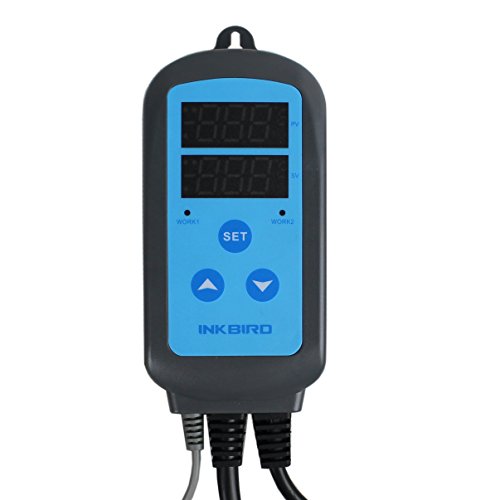

It is an easy-to-use, safe and reliable dual relay output humidity controller.
Its play-n-plug designed: Plug it into wall socket, set your controller’s humidification or dehumidification values to your need.
It can maintain the humidity between humidification and dehumidification automatically.
In addition, the humidifier and dehumidifier can be programmed separately, too.
The maximum electrical load is 10A. It can fit many residential humidifier and dehumidifier.
It is widely used for mushroom, mini greenhouse, ventilator fan, crawl space, turtle enclosure, curing chamber, snake cage, tobacco cage, etc.
Specification:
Power Input: 100~240VAC, 50Hz/60Hz
Power Output: Max. 10A, 100V~240V AC
Humidity Measuring Range: 5~99.99%RH
Humidity Control Range: 5~99%RH
Resolution: 1%RH
Accuracy: ±3%RH

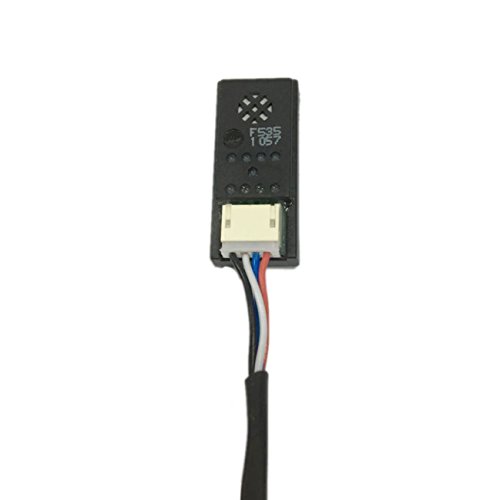

Sensor Model: AM-2301
Sensor Stability: 0.5%RH/yr
Sensor Length: 2m / 6.56ft
Relay Contact Capacity:
Humidification (12A, 100-240VAC)
Dehumidification (12A, 100-240VAC)
Input Power Cable Length: 1.5m (5ft)
Output Power Cable Length: 30cm (1ft)
Dimension: Body: 140x68x33mm (5.5×2.7×1.3inch)
Socket: 85x42x24mm(3.3×1.7x1inch)
Ambient Temperature: -30~75°C / -22~167°F
Storage: Temperature -30~75°C / -22~167°F
Humidity 20~85% (No Condensate)
Warranty: 1 Year
Package Included:
1 x Humidity Controller
1 x User Manual
[Two Modes] Switch different modes between humidification and dehumidification automatically.
[Range & Accuracy] Humidity measuring range: 5~99.99%RH; Humidity control range: 5~99%RH; Accuracy: ±3%RH.
[Function] Control humidity by setting value and differential value. Calibrate the humidity value, delay protection for control output, and query current temperature.
[Alarm for Safe] Alarm when humidity exceeds high/low humidity setting value; alarm when sensor error or humidity exceeds limit.
[Multipurpose] Widely used for mushroom, mini greenhouse, ventilator fan, crawl space, turtle enclosure, curing chamber, snake cage, tobacco cage, etc.
